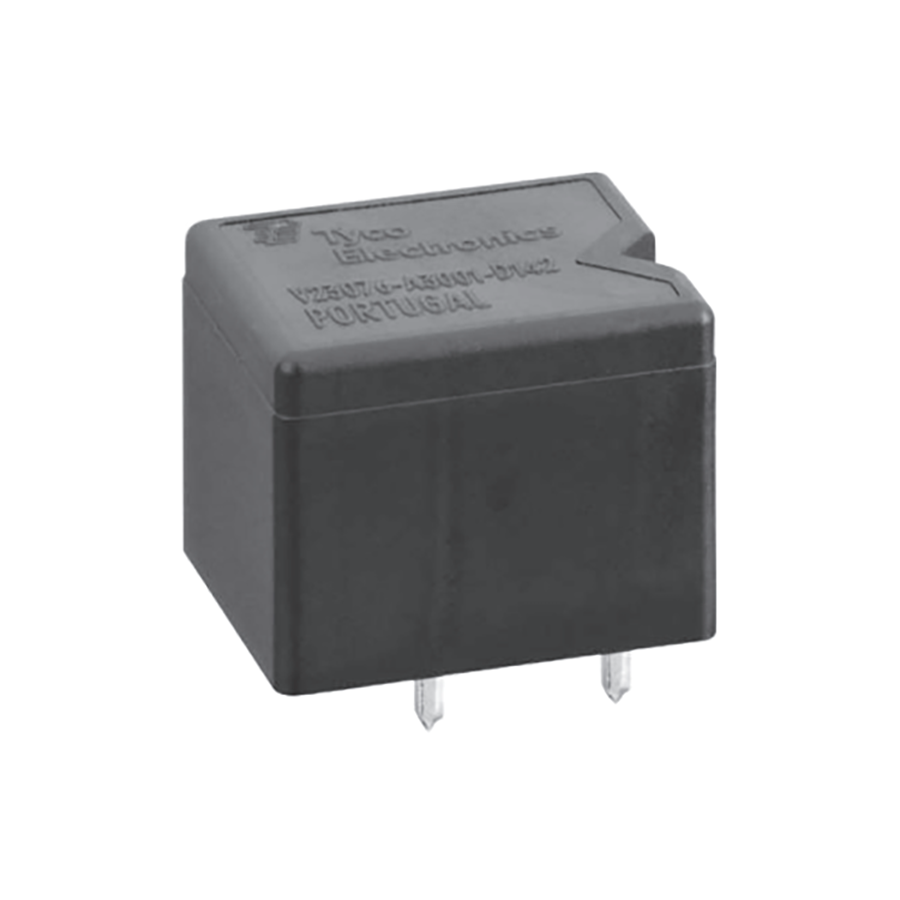

1393277-4
Manufacturer:
TE Connectivity
Mfr.Part #:
1393277-4
Datasheet:
Description:
Relays PCB Mount Contact Current Rating:45 A Coil Voltage (DC):12 V Coil Voltage (AC):12 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 26.1 mm |
| Width | 21.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 21.2 mm |
| Packaging | Bulk |
| Voltage Rating | 12 V |
| RoHS | Compliant |
| Current Rating | 45 A |
| Coil Voltage (DC) | 12 V |
| Coil Type | Non-Latching |
| Operate Time | 5 ms |
| Release Time | 3 ms |
| Contact Current Rating | 45 A |
| Termination Style | PC Pin |
| Switching Voltage | 12 VDC |
| Coil Voltage (AC) | 12 V |
| Must Operate Voltage | 6.9 V |
| Must Release Voltage | 1.2 V |
Stock: 4
Distributors
pcbx
pcbxUnit Price$3.23506
Ext.Price$3.23506
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.23506 | $3.23506 |
| 10 | $2.71611 | $27.16110 |
| 25 | $2.57248 | $64.31200 |
| 50 | $2.54065 | $127.03250 |
| 100 | $2.50922 | $250.92200 |
| 300 | $2.31771 | $695.31300 |
| 500 | $2.14081 | $1070.40500 |
| 1000 | $1.97745 | $1977.45000 |
